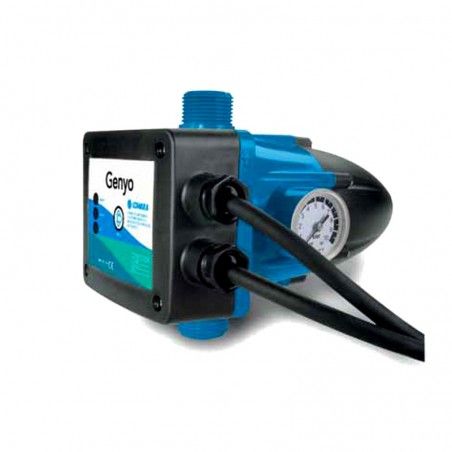

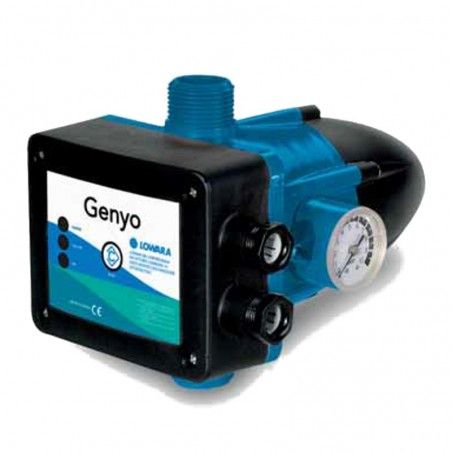

GENYO 16A Pressure Regulator
GENYO 16A is a compact electronic pressure-flow switch device for the control and protection of single-phase electric pumps created for residential domestic applications .
SHIPPING
Applications
Domestic pressurization (single and multi-family homes )
Small irrigation and gardening
Civil water systems such as bathing establishments , campsites and sports facilities
Product features
Dry-running protection integrated in the device
No maintenance required (cost-effective alternative to traditional membrane vessel autoclaves)
Quick and easy installation
Small dimensions
Stable pressure without fluctuations at a constant operating point
Reserve tank to counteract small leaks or drips of the hydraulic system (patented system)
Low pressure drop
Automatic restart in case of lack of water
Adjustable starting pressure
- Maximum ambient temperature
- 0÷60°C
- Maximum working pressure
- 10 bar
- Feeding
- single phase 220-240V
- Max. flow rate/Max. head
- 10 m3/h (see pressure drop diagram)
- Protection
- IP 65
- Frequency
- 50/60Hz
- Adjustable starting pressure (by means of a special screw)
- 1.5 ÷ 3.0 bar
- Maximum current
- 16A inductive
- Automatic restart
- Yes
- Input-output connections
- R1”
- Manometer
- (0÷10 bar)
- Power cable and plug - motor
- 1.5 m Schuko plug
